Zero-Crush Wheels with bearing hub, molded ML6 polyurethane covering

Delivering Consistent Reliability at Higher Speeds

When your application demands more than our standard Idler Wheels, Bearing No-Crush Wheels deliver the performance and precision your design requires. Our bearing No-Crush Wheels are engineered for higher speeds—ideal for OEMs, engineers, and mechanical designers seeking longevity and performance.

What Are Bearing No-Crush Wheels?

Bearing No-Crush Wheels are bonded directly to bearings or bonded to a metal core that houses the bearings within it. Bearing No-Crush Wheels spin freely around a fixed shaft or shoulder bolt. Unlike traditional Idler No-Crush Wheels, these offer superior performance in high-speed and continuous use applications. This makes them a go-to solution for conveying, guiding, or cushioning applications where speed and load capacity are critical.

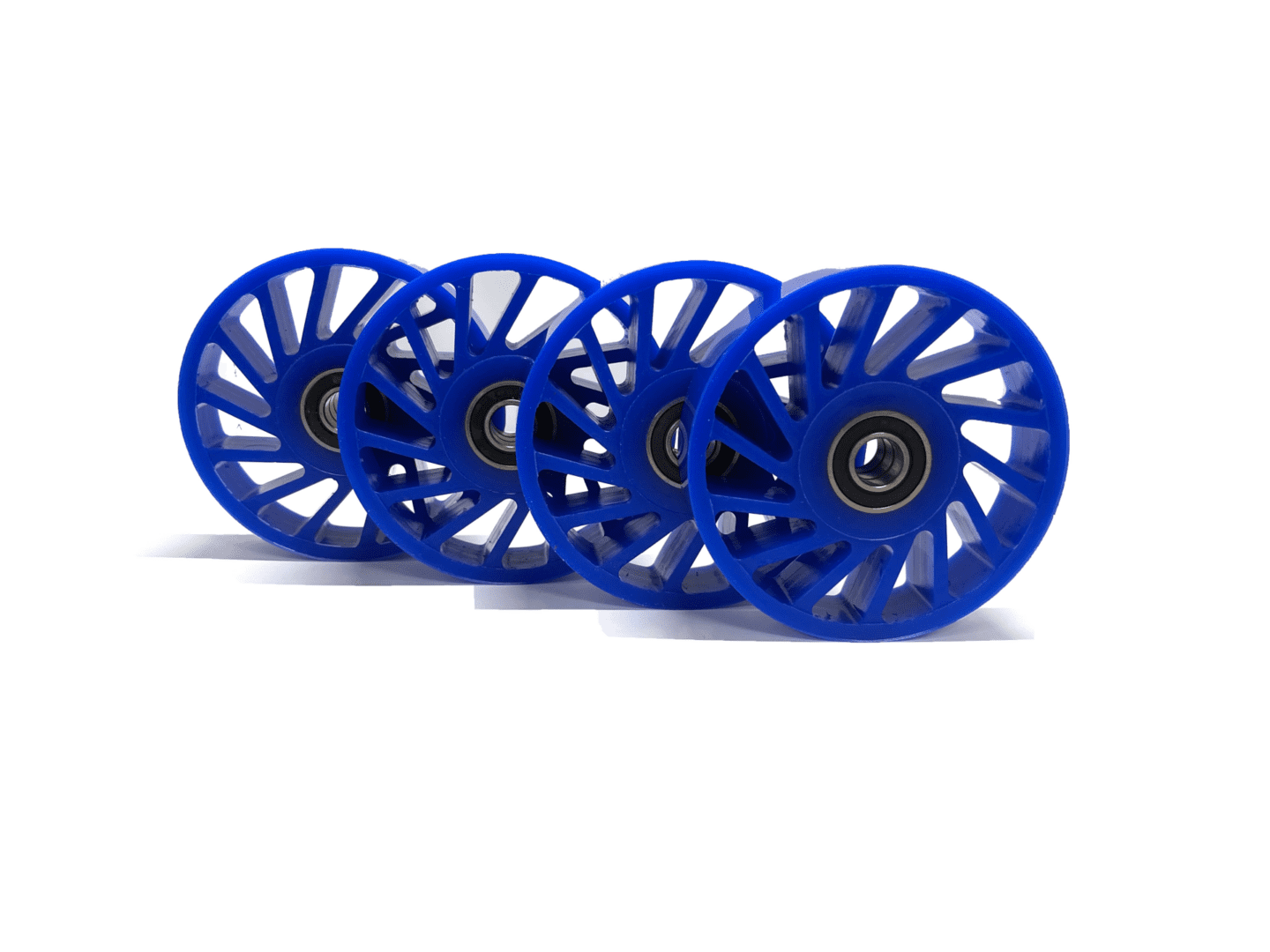

Polyurethane No-Crush Wheel with Bearing
Poly Pacing Wheels with Ball Bearing Core

Key Advantages of Bearing No-Crush Wheels

Designed for Demanding Applications

  • Higher speed capabilities
  • Minimized wear and vibration
  • Improved system efficiency

Flexible Integration Options

  • Available in SAE or metric bearing sizes
  • Compatible with various shaft sizes and mounting configurations
  • Available as well with machined cores delivered complete

Complete Customization for Your Design

Durometer

The durometer of a Bearing Zero Crush wheel can be specified with no effect on the price for any volumes required. For more information on durometer, check out our Technical Information and Frequently Asked Questions (FAQ) section below!

Color

For standard Bearing No-Crush Wheels, the color of the wheel is a designation to the durometer of the polyurethane (40A = Yellow, 55A = Blue, etc.), however, ​​NoCrushWheels.com can provide specific durometers to your preferred colors at a slight upcharge, regardless of volume. For colors not shown or for an exact PMS / RGB color match, this can also be done but for an additional cost - Contact Us to find out more.

Core

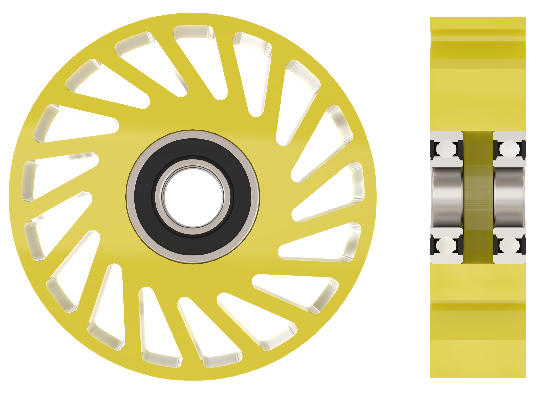

Molded to Bearings

In this configuration, the wheel material is directly molded to the bearing, eliminating the need for a separate core.

Benefits of Molded Bearing Wheels:

  • Faster lead times Simplified manufacturing reduces lead time
  • Cost-effective production: Eliminates the time and expense of machining a separate core

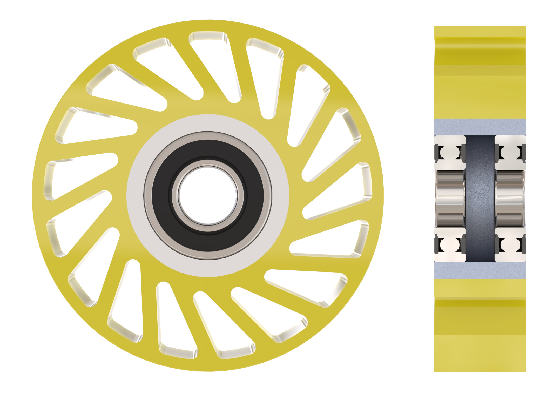

MOlded to Machined Cores

Bearings are pressed into a plastic, aluminum, or steel machined core and held in place with a precision press-fit or snap rings.

Benefits of Machined Core Design:

  • Wider width: Core construction allows for larger widths
  • Easier bearing replacement: Swap out bearings without having to replace the entire wheel
Generally recommended for applications when a roller width greater than 2" is required.

Width

Modifying the surface width of a Bearing No-Crush Wheel is a simple request.  This can be done in volumes as low as one piece.  For significantly greater widths (2"+), we recommend stacking multiple Bearing Zero Crush Wheels together, as this will be the most cost and lead-time efficient manner.

Outside Diameter

All Bearing Zero Crush Wheels are molded exactly to size and dimension, using NoCrushWheels.com's time-proven techniques and methods to guarantee maximum quality.  Molding Bearing No-Crush Wheels guarantees the exact same size and properties between wheels and batches - time and time again.  To generate a custom outside diameter for a Bearing No-Crush Wheel involves producing tooling to this exact dimension and generally starts to make sense for estimated annual usage of 100+ Bearing No-Crush Wheels per year.

Spoke Profiles

Customers request custom spoke profiles for their Bearing No-Crush Wheels for many different reasons such as matching the exact profile of an existing wheel manufacturer that is no longer in business, wishing to keep the same durometer between all of their Bearing No-Crush Wheels but with different compliance properties, and sometimes simply because they have their mind set on something that is unique and specific to their Bearing No-Crush Wheels.  Whatever the reason might be, ​​NoCrushWheels.com can deliver custom spoke profiles, generally for orders where the estimated annual usage is 100+ Bearing No-Crush Wheels per year.

FDA Compliance

For applications which require FDA-Compliant polyurethane molded Bearing No-Crush Wheels, we offer special FDA-Compliant Bearing No-Crush Wheels (dry).  This guarantees safe and compliant use of our Bearing Zero Crush Wheels for food, beverage, pharmaceutical, and other sensitive applications; this is available for volumes as low as 10 pieces.

Anti-Static

For applications which cannot create a static charge, ​​NoCrushWheels.com offers special additives to its polyurethane anti-static Bearing No-Crush Wheels to minimize the amount of static potential and is available for order volumes as low as 10 pieces.

Applications Across Industries

Our Bearing No-Crush Wheels are relied on by OEMs, design engineers, and mechanical system integrators in a wide range of industries:

  • Packaging & Printing
  • Food Processing Equipment
  • Bottling & Labeling Systems
  • Paper & Tissue Converting
  • Automated Material Handling

Design Your Bearing No-Crush Wheel

Ready to find the perfect Bearing No-Crush Wheel to fit your application? Use our Custom No-Crush Wheel Configurator to build the ideal Bearing No-Crush Wheel for your application.

Interested in other molded polyurethane products?

NoCrushWheels.com is your single source for No-Crush Wheels.  If you're looking for other molded polyurethane products, our parent company - Meridian Laboratory has been a manufacturer producing the highest quality molded polyurethane products in Madison, Wisconsin since 1963.  Meridian Laboratory offers a wide range of standard and custom-molded polyurethane solutions!

Click below and learn how we can deliver standard and custom-molded polyurethane solutions for you!
